Breakout Box Serial
The Breakout Box Serial serves as a troubleshooting tool to determine the wiring of an electrical connector interface on a control unit of a vehicle. Typically, a breakout box is inserted between the control unit and the wiring harness to measure the signals or to introduce malfunctions for diagnostic courses. Breakout boxes are extremely useful in troubleshooting problems resulting from errors (e.g., faulty components or bad contacts) or defective interconnects resulting from broken wiring.
The Breakout Box 155M is a 155-channel failure simulation box. This box has been designed in order to be able to simulate faults in automotive electro..

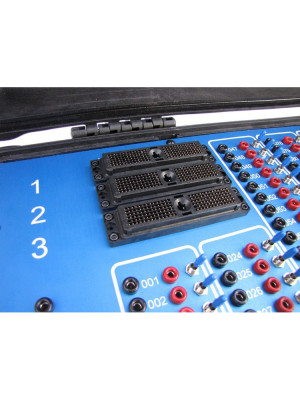

The Breakout Box 232M is a 232-channel failure simulation box. The Breakout Box 232M is even more universal then the smaller models. This box has been..
This box is a 78-channel failure simulation box or breakoutbox. This system is specifically designed for fault simulation in engine management systems..
The Cover for Breakout Box 155M serves to hide the switches so the student can not see which switch is activated...
The Cover for Breakout Box 232M serves to hide the switches so the student can not see which switch is activated. With this cover in place he is still..
This jumper connector is being used to connect to the adapter cable when the breakout box is disconnected. In this way the vehicle is still in functio..
